Characterization and measurement laboratories


The laboratory has a number of test stands available for the development of advanced diagnostics, ultra-fast syncrhonisation systems, electronic processor boards, control hardware and fast digital feed-back systems.

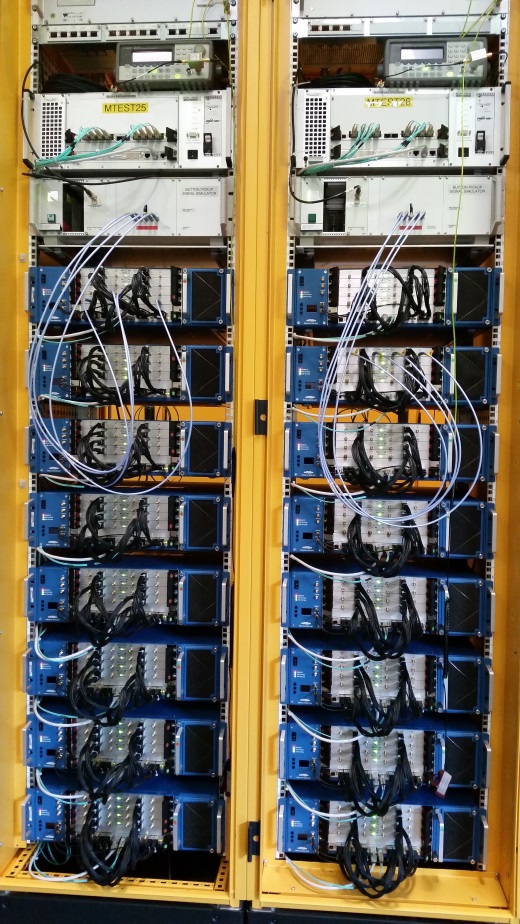

The photo on the left shows an equipment rack built for tests in series of button beam position monitors, built at PSI as part of Switzerland’s in-kind contribution to the European X-FEL project.
