50MHz RF cavity test stand

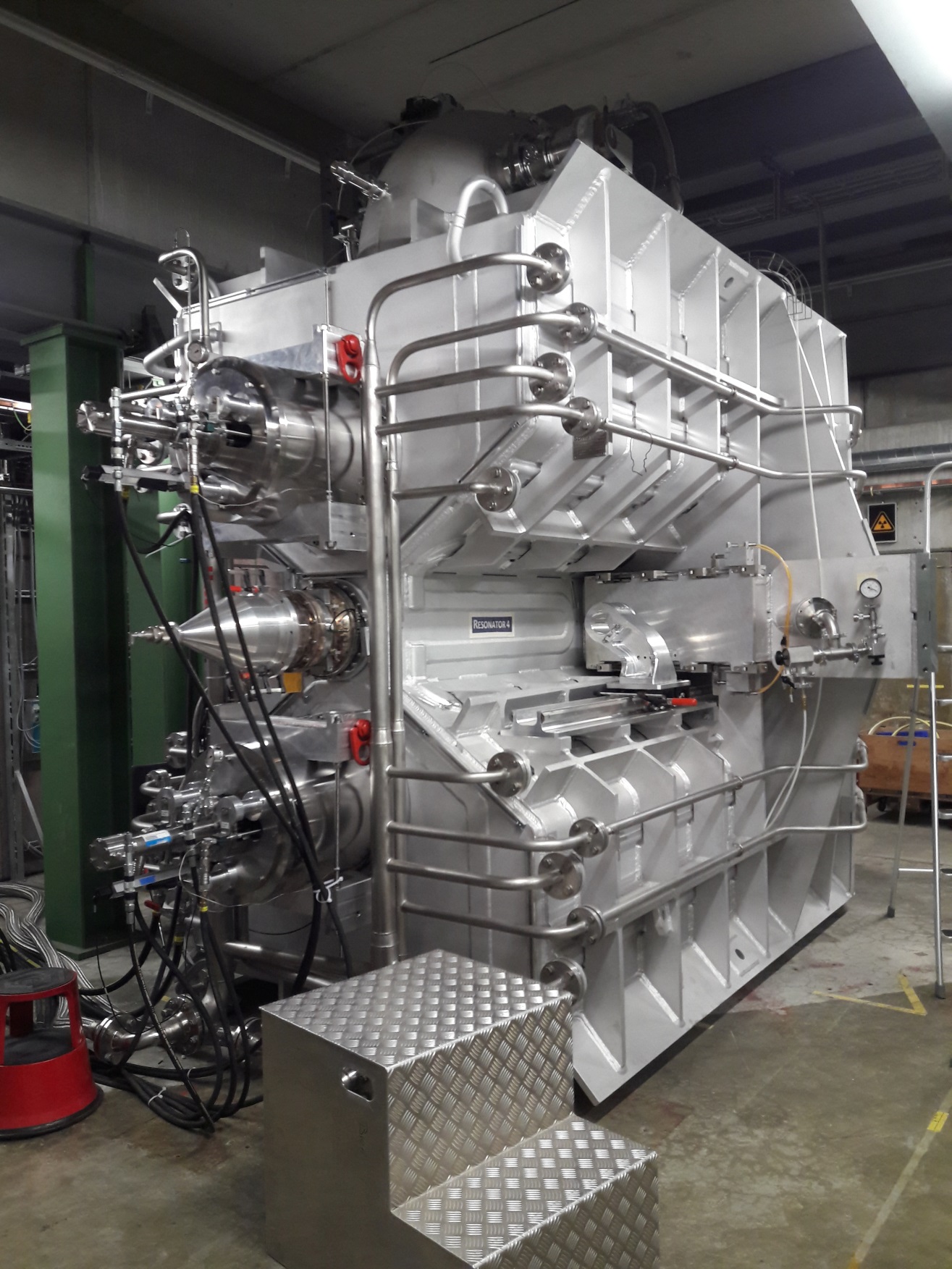

The large 50 MHz resonators for the injector ring and main ring of the high intensity proton accelerator require a test facility to measure their performance and to test low level RF control systems with them. The picture on the right shows one of the new Injector resonators built as part of the HIPA up-grade.
